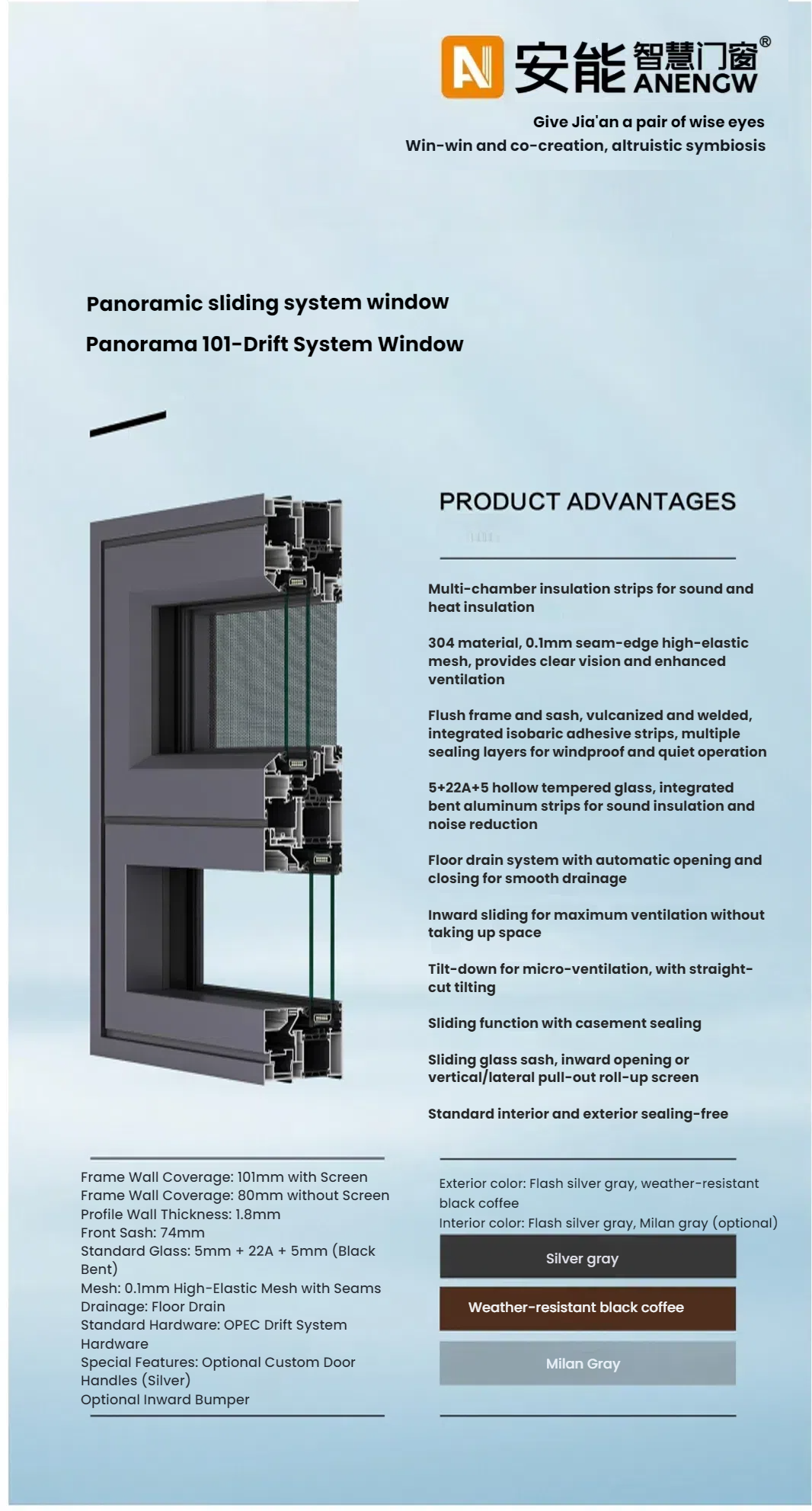

Multi-cavity insulation strips for sound and heat insulation
304 material with 0.1mm seam-edge high-elastic mesh for clear vision and enhanced ventilation
Flush frame and sash, vulcanized and welded integrated isobaric adhesive strips, multiple sealing layers for windproof and quiet operation
5+22A+5 hollow tempered glass, integrated bent aluminum strips for sound insulation and noise reduction
Floor drain system with automatic opening and closing for smooth drainage
Inward sliding for maximum ventilation without taking up too much space
Tilt-down for micro-ventilation, tilt-down with straight-cut sliding
Sliding function with casement sealing
Sliding glass sash, inward opening or vertical/lateral pull-down roll-up screen
Standard interior and exterior sealing-free
-
Frame to wall coverage: 101mm with screen
Frame to wall coverage: 80mm without screen
Profile wall thickness: 1.8mm
Sash front: 74mm
Standard glass configuration: 5+22A+5 mm (black bend)
Mesh: 0.1mm high-elastic mesh with seam hem
Drainage: Floor drain
Standard hardware: OPEC drift system hardware
Special features: Optional custom door handle (silver)
Optional tilt-down bumper
Exterior colors: Glittering silver gray, weather-resistant black brown
Interior colors: Glittering silver gray, Milan gray (optional)
