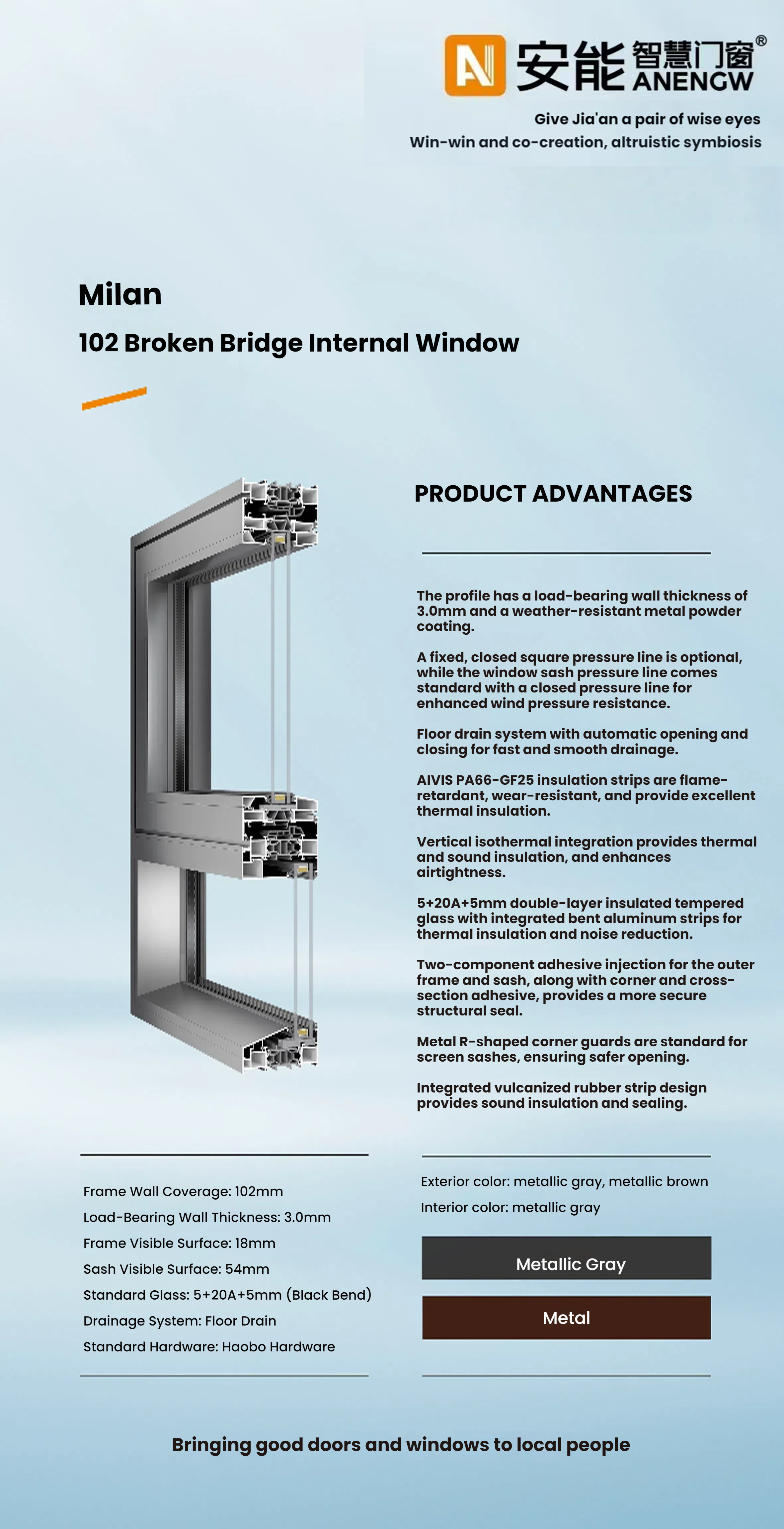

Profile with a load-bearing wall thickness of 3.0mm and a weather-resistant metal powder coating.
Optional fixed closed square pressure profile, standard closed pressure profile for sash pressure profiles, providing enhanced wind pressure resistance.
Floor drain system with automatic opening and closing for fast and smooth drainage.
AIVIS PA66-GF25 insulation strips, flame-retardant and wear-resistant, for excellent thermal insulation.
Vertical isothermal integration for thermal and sound insulation, and enhanced airtightness.
5+20A+5mm double-layer tempered glass with integrated bent aluminum strips for thermal insulation and noise reduction.
External frame and sash use a two-component adhesive injection process, with corner and cross-section adhesive application for a more secure structural seal.
Metal R-shaped corner guards are standard for screen sashes, ensuring safer opening.
Integrated vulcanized rubber strip design for sound insulation and sealing.
Frame wall coverage: 102mm
Load-bearing wall thickness: 3.0mm
Frame visible area: 18mm
Sash visible area: 54mm
Standard glass configuration: 5+20A+5 mm (black bend)
Drainage system: Floor drain
Standard hardware: Haobo Hardware
Exterior color: Metallic Gray, Metallic Brown
Interior color: Metallic Gray
