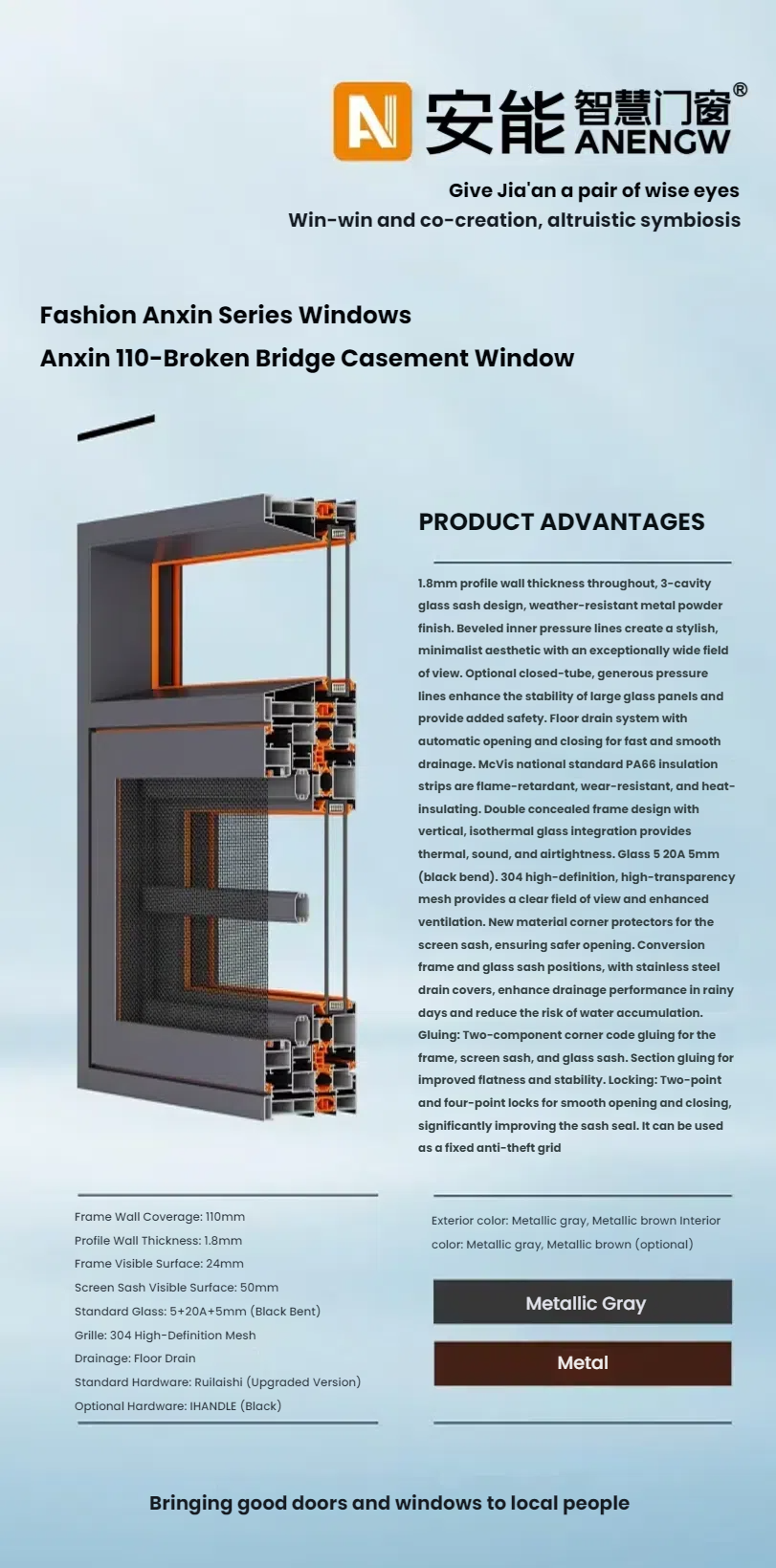

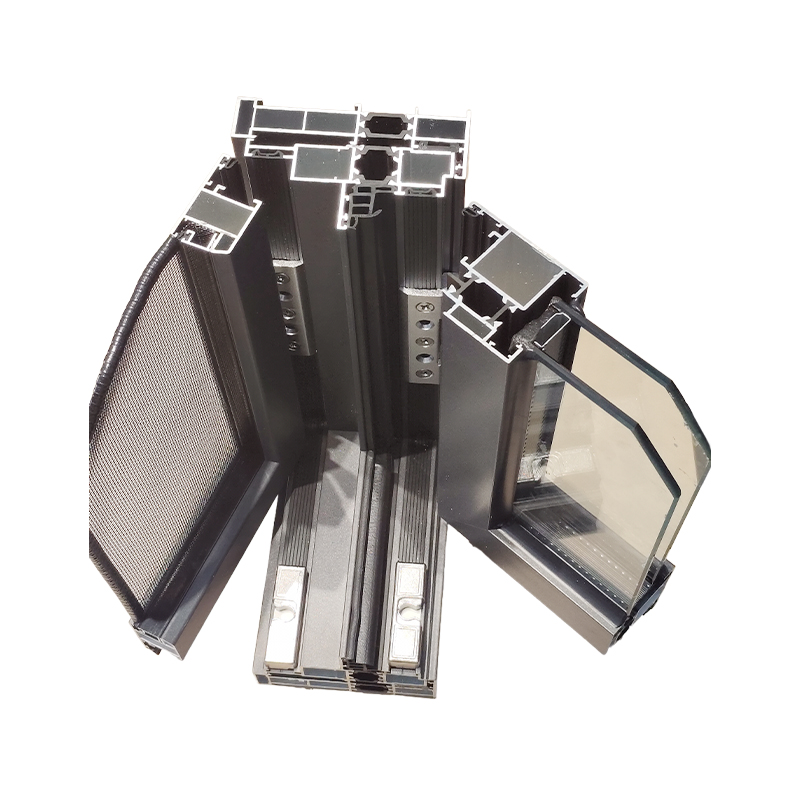

Profile wall thickness is 1.8mm throughout, with a three-cavity glass sash design and a weather-resistant metal powder coating.
Beveled internal pressure lines create a stylish, minimalist aesthetic and offer a wide field of view. Optional closed-tube pressure lines enhance the stability and safety of large glass panels.
Floor drain system with automatic opening and closing for fast and smooth drainage.
McVision national standard PA66 insulation strips offer flame retardancy, wear resistance, and excellent thermal insulation.
Inner and outer double concealed frame design allows for vertical isothermal integration of the glass, providing enhanced thermal insulation, sound insulation, and airtightness.
Glass 5+20A+ 5mm (black bend)
304 high-definition, high-transparency mesh provides clear vision and enhanced ventilation.
New material corner protectors for safer opening of the screen sash.
Switching frame and glass sash positions and stainless steel drain caps enhance rainwater drainage and reduce the risk of water accumulation.
Gluing: Two-component corner glue injection for the frame, screen sash, and glass sash, plus cross-section glue, improves product flatness and stability.
Locking: Two-point and four-point locking for smooth opening and closing, significantly enhancing the window sash's sealing and theft resistance.
Can be used as a fixed security screen.
